Industrial X-Ray Wheel Inspection Radiography machine

Basic Info

Model No.: CLG-G160P-A

Portable: Non Portable

Form: Other

Application: Industrial

Type: Industrial High-definition X-ray Detector

Certification: CE, ISO

Customized: Customized

Alarm Form: Display Alarm

Working Way: Continuous Working

Purpose: Inspect Any Defect On Wheel/Hub

Defect: Air Hole, Slag Inclusion, Loosen, Zoom Hole

Voltage: 160KV

Additional Info

Packaging: WOODEN PACKAGE

Productivity: 100

Brand: JUXING

Transportation: Ocean,Land,Air

Place of Origin: DANDONG

Supply Ability: 100

Certificate: ISO9001

HS Code: 90221990.00

Port: DALIAN,SHENYANG,BEIJING

Product Description

Industrial X-Ray Wheel Inspection Radiography machine

2000Y     First NDT company who certified by ISO9001 quality department

2001Y     Fist wheel RTR system research manufacturer

2002Y     First piston motor RTR system research manufacturer

2005Y     First NDT company who used solid HV generator into Chinese x ray market

2006Y     Research SAW pipe inspection system which can detect max 3500mm pipe

2008Y     China first set Li-ion battery inspection system manufacturer

2009Y     Build new"Annual hundred set RTR system producing Factory"

2010Y     Single polar/Bipolar metal ceramic x ray tube programme proved by Chinese government

2011Y     First 6Mev linear accelerator research and manufacture by DNDT successed

2012Y     New age X ray generator/High voltage power supply used in China market and got good feedback

System Technical Targets:

1． Parameters of inspected wheel:

Model:wheel

Dimension:12~22inches

Material:Al

Defects:Air hole, slag inclusion, loosen, zoom hole, pinhole and so on

2．Penetration ability of X-ray machine:

Film:Fe  28mm   Al  160mm

Radiography:Fe  18mm   Al  100mm

3．System resolution:30p/cm

4．System sensitivity:

Dynamic sensitivity:1.8~2.5%

Statistic sensitivity:0.8~1.6%

         Statistic sensitivity:Images with integral noise-reduction process by image processing software (or hardware) during object in statistic state.

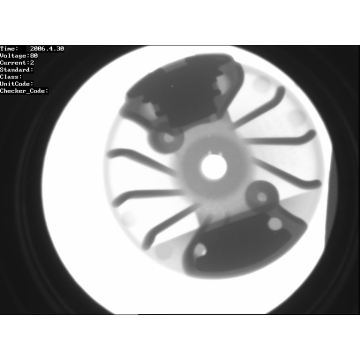

Piston Inspection:

Wheel Inspection:

Motor Shell Inspection:
